Cutting Tips 101

Gas Welding - Tuff Flame

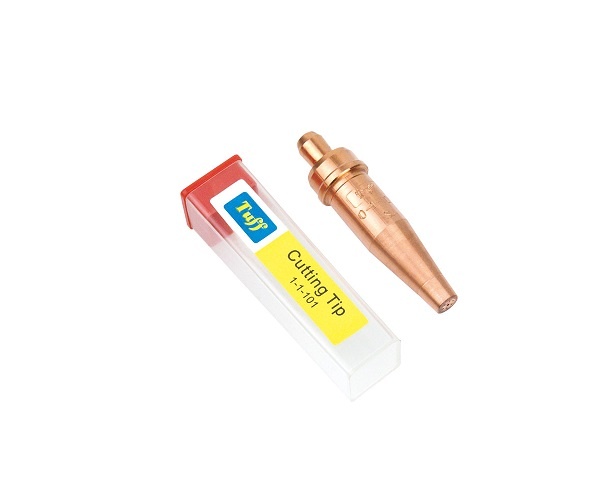

CUTTING TIPS 101

Acetylene Cutting Tips (1-101 SERIES)


Heavy Quality Copper Alloy
Pre-heat & cutting Oxygen Orifices are swegged using tool steel manvels
* Long Life
* Assure proper pre-heat & maximum
* Ease of manufacturing – Saves Cost
  velocity on cutting stream
  – Saving your money

 Seat Machined With Diamond Tools
Facing Achieved With Electro Chem Grinder
* Assures proper angle for guaranteed
* Assure uniform reliability – Pre-heats
  seating
  & cutting oxygen every time

Operational & Performance Data
1-101 Series (Oxy – Acetylene)


Metal

Cutting
Cutting
Pre-Heat




P/N
Thickness
Tip Size
Oxygen
Oxygen
Oxygen
Acetylene
Acetylene
Speed
Kerf

(inches)

(PSIG)
(SCFH)
(PSIG)
(PSIG)
(SCFH)
I.P.M
Width
TF-00-1-101
1/4
00
20/25
30/35
3/5
3/5
6/11
27/30
.05
TF-0-1-101
3/8
0
25/30
55/60
3/5
3/5
6/11
24/28
.06
TF-0-2-101
1/2
0
30/35
60/65
3/6
3/5
9/16
20/24
.06
TF-1-1-101
3/4
1
30/35
80/85
4/7
3/5
8/13
17/21
.07
TF-2-1-101
1
2
35/40
140/180
4/8
3/6
10/18
15/19
.09
TF-3-1-101
2
3
40/45
210/240
5/10
4/8
14/24
12/15
.11
TF-4-1-101
3
4
40/50
280/320
5/10
5/11
18/28
9/12
.12
TF-5-1-101
4
5
45/55
390/450
6/12
6/13
22/30
8/11
.15
TF-6-1-101
6
6**
45/55
500/600
6/15
8/14
25/35
6/8
.15

This product is currently out of stock and unavailable.
